Mineral processing is a key activity in the mining world, focusing on boosting the worth of raw minerals pulled from the earth. This crucial step turns the dug-up ores into cleaner and more concentrated versions that are ready for more use. By using both physical and chemical methods, mineral processing separates good, useful minerals from worthless waste rock, known as gangue. Diving into what mineral processing involves lays the groundwork for getting how important it is for mining work and more.
The Significance of Mineral Processing
At the heart of it all, mineral processing boosts the mining industry’s knack for making the most out of ore deposits in a profitable way. It’s all about picking out and concentrating the good stuff – those valuable minerals. This not only helps mining projects make more money but also plays a big part in looking after our environment. By making it possible to get minerals from less rich ores, it cuts down on the need to mine too much, saving precious natural resources and keeping the landscape from being messed up.
Commonly Processed Minerals Include:
● Metals: This category encompasses a wide range of elements that are essential for various industries, including but not limited to aluminum, bauxite, chalcopyrite (a major copper ore), chromite (the main source of chromium), copper, galena (lead ore), gold, hematite (an iron ore), iron, lead, magnetite (another iron ore), molybdenum, nickel, platinum, silver, sphalerite (zinc ore), tin, and zinc.
● Non-metals: Coal, quartz, diamonds.
● Industrial Minerals: This category includes phosphate, potash, and sulfur—key ingredients in fertilizers; gypsum, used in construction; and barite.
● Precious Stones: Apart from diamonds, other precious stones like rubies, emeralds, and sapphires.
All these minerals go through mineral processing to boost their purity, concentration, or overall usefulness, showing just how versatile and essential this area is in the mining world. Thanks to advances in technology and smarter ways of doing things, the mineral processing industry keeps getting better and better, making sure we can get the most out of the earth’s mineral treasures in a sustainable and efficient way with the right equipment.
5 Steps to Mineral Processing
Step 1: Crushing and Grinding
The first step in turning ore into useful minerals starts with making the ore smaller by crushing and grinding it under high pressure. Machines called jaw crushers and gyratory crushers are super important for breaking the ore into smaller bits. These big, strong machines squish the ore to make it smaller. Then, cone crushers make the pieces even tinier, getting the ore ready for the next steps. Next up is grinding, which is done in special mills like grinding mills, ball mills, or rod mills, depending on what we need. The goal is to get the ore just the right size so we can get as much valuable stuff out of it as possible. The grinding process helps separate the good minerals from the useless parts and makes sure the next steps, like separating the minerals, work even better.
Step 2: Screening and Classifying

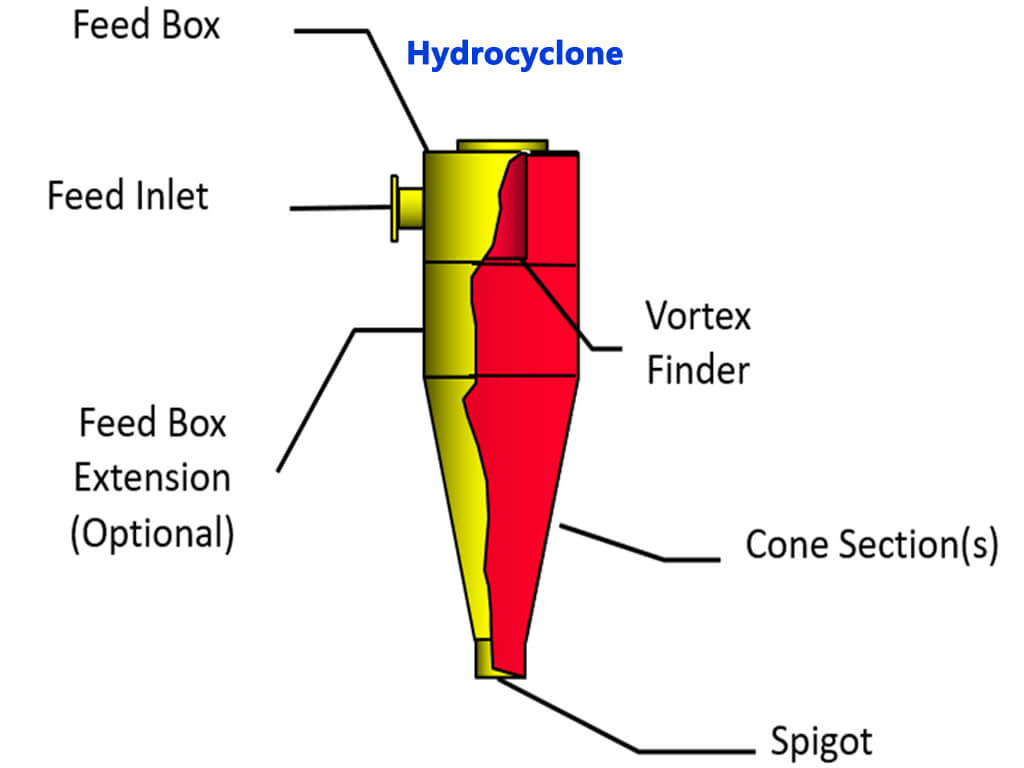

After we pulverize and crush the mineral into littler pieces, we at that point do screening and classifying. These steps are super vital since they offer assistance us discover the small pieces we require by looking at how enormous and overwhelming they are. We utilize things like wire screens and machines called hydrocyclones for this. Amid screening, we let the smashed mineral drop over screens that have gaps the idealize estimate. That way, as it were the little pieces we need drop through, and the enormous ones remain behind. Classifying implies sorting things out. It isolates pieces by how overwhelming they are and other highlights. It employments uncommon machines called gravity concentrators to do this. Doing everything accurately plans the mineral for the another parts, such as coasting it in water and pulling it with magnets. This makes a difference in organizing the metal by measure and maximizing the amount of ore processed to the target size. It makes beyond any doubt we utilize as much mineral as we will, making it the correct estimate for the leading result afterward.
Step 3: Concentration (Mineral Processing Method)
In the world of mineral processing, five methods really shine because they work so well and are used a lot: gravity separation, magnetic separation, flotation, electrostatic separation, and chemical treatment.
Gravity Separation
Gravity separation taps into the weight difference between valuable minerals and waste rocks. We use tools like jigs, spirals, and shaking tables for this job. They use gravity to organize particles by how heavy they are and their specific gravity. This technique shines when dealing with bigger chunks and is a go-to method for mineral sands and gold. Also, this method works really well for heavy minerals like tin, tungsten, and chromite. Since these minerals are heavier, they are different from waste stuff. This makes it easier to separate them using a method called gravity concentration.
Magnetic Separation
Magnetic separation makes the most of minerals’ magnetic traits to separate them. With magnetic separators, we can sort minerals by how magnetic they are, separating them from each other or from the non-magnetic waste material, known as gangue. This technique is super important when we’re working with iron ores and it’s also used for mineral sands. It’s especially good for pulling apart magnetite and hematite, and other iron-rich minerals from the gangue at right angles using magnetic forces. This way, we can focus on the iron stuff we need for making steel.
Flotation
Flotation is all about picking out minerals by making them stick to air bubbles inside a flotation cell, thanks to differences in how their surfaces react. We add chemical helpers to make the valuable mineral bits shy away from water and cling to the bubbles, which lets us scoop them up. The unwanted materials, or gangue, keep loving water and get left behind. This step is super important when we’re dealing with complicated ores that have copper, lead, zinc, and platinum in them. If we’re working with ores that contain tiny bits of sulfide minerals like copper, molybdenum, and lead, we often use froth flotation to bump up the amount of these metals, getting them ready for the next stages of processing.
Electrostatic Separation
Electrostatic separation, also known as electric separation, splits up valuable minerals from useless material by taking advantage of how they react to electricity on their surface. Here’s how it works: we give the particles an electric charge and then put them into an electric field. Depending on their charge, they get pulled towards different electrodes. This technique is super useful for separating minerals found in sand and certain types of metal ores, like ilmenite and rutile (these are titanium ores), and also zircon. Because it can clearly distinguish between minerals based on how well they conduct electricity, it’s perfect for sorting out those that conduct electricity from those that don’t.
Chemical Beneficiation
Chemical beneficiation uses chemical reactions to change the surface of minerals in a way that makes them easier to separate. This includes methods like leaching. In leaching, we use chemicals like acids or something called sodium hydroxide to dissolve valuable metals from the ore. This way is really good for getting precious metals out of tricky rocks. People use it a lot to get gold, uranium, and copper. For example, to get gold from ores that don’t have much gold, we use a method called cyanide leaching. For uranium, we mostly use methods called acid or alkaline leaching.
Step 4: Dewatering
Dewatering, is super vital when we need to form minerals into things ready to utilize. It’s almost evacuating additional water by making the blend thicker and after that sifting it. In thickening, we let gravity do its job by pulling down the strong parts, which makes the blend less watery. After that, it’s time for sifting. This can be when we utilize extraordinary machines to crush out indeed more water and little particles. Machines like channel presses or drum channels are great at this. These steps make beyond any doubt the minerals are prepared for the final step of drying and, after that, turning them into valuable items. Preparing water keenly in mining makes a difference the planet since it implies we’re not squandering water or other assets.
Step 5: Drying and Final Product Processing
We’ve made it to the final process of mineral processing – drying and getting the final product ready for sale or more work. Using heat drying methods like rotary kilns or fluidized bed dryers helps us zap away any leftover moisture, making sure the levels are just right. After drying, the product might go through even more processes like melting down (smelting), soaking in chemicals (leaching), or mixing with other metals (alloying), all depending on what we need from the mineral. Getting the drying part perfect is super important because it really makes or breaks the quality and how well we can sell or use the final product. If we don’t dry it properly, we could mess up the valuable minerals inside or end up paying more for shipping because it’s too heavy.
Case Study: Mineral Processing for Gold
Bringing together the steps of processing both alluvial and rock gold gives us a full view of how gold is pulled out of the earth, mainly through gravity separation. This method is key in getting gold back, working well with both the loose gold found in places like riverbeds (alluvial) and the more solid gold stuck in rock. By using the natural heaviness of gold compared to other materials around it, this technique really shines in separating gold from the rest.
1. Alluvial Gold Processing: When we talk about alluvial gold, it mainly goes through a process called gravity separation. This happens because the gold is found in riverbeds, streambeds, and floodplains, mixed in with lighter dirt and sand. Here’s how we do it:
● Feeding: We start by feeding the soil into the process, using cool gadgets like vibrating feeders or just loading it by hand.
● Washing and Sieving: Then we clean the gold using gold trommel wash plants and screens. This helps us get rid of the dirt and separate the gold from other small bits.
● Primary Selecting: First, we use machines that spin super fast or special jig machines to separate the gold.
● Final Concentration and Refining: Then, to get all the gold together, we use shaking tables, sluice boxes to catch any missed bits, and smelting furnaces to make the gold pure.
2. Rock Gold Processing: On the other hand, processing rock gold begins with physically breaking down the ore by crushing it, sometimes in several steps, to get it ready for separating. Just like with alluvial gold, after we prepare it at the start, the ore taken from quartz veins or other hard rock spots goes through:
● Gravity Separation: Here’s where equipment like shaker tables come into play, especially useful for getting the oxide gold separated right after crushing.
● Flotation and More: For gold mixed with sulfide minerals, we often use flotation to get the gold away from those sulfides. And for the really tricky ores, we might even use more steps, like ball milling, to make sure we’re getting as much gold out as we can.
Central Role of Gravity Separation: In both alluvial and rock gold mining, gravity separation is the star at the start. For alluvial gold, its straightforward and effective way of picking gold out from lesser materials makes it the top pick. It’s usually the first step, followed by even more detailed methods. With rock gold, gravity separation teams up with other methods, such as flotation for the gold that’s mixed with sulfide minerals, showing just how complex the ore can be. This mix-and-match strategy helps us get the most gold we can, showing just how flexible gravity separation is when we’re dealing with different mining techniques.
Putting it all together, gold mining is really about using what nature gives us—like the weight of gold—to our advantage. We use a whole range of tools to meet the unique needs of the ore we’re working with. This mix of old-school and new tricks shows how clever the mining world can be when it comes to getting gold.
What Mineral Processing Equipment Do You Need?
| Equipment Category | Equipment Type |
|---|---|
| Crushing and Size Reduction | Jaw Crushers
Cone Crushers Gyratory Crushers Hammer Crushers Impact Crushers Roll Crushers |
| Grinding and Further Size Reduction | Ball Mills
Rod Mills SAG Mills Vertical Roller Mills |
| Separation and Concentration | Magnetic Separators
Flotation Cells Gravity Separation Equipment (e.g., Jigs, Spirals, Shaking Tables) Centrifugal Separators Hydrocyclones |
| Dewatering and Moisture Reduction | Thickener Tanks
Filter Presses Vacuum Filters Rotary Dryers |
| Material Handling | Conveyor Belts
Feeders (e.g., Apron, Grizzly, Vibrating) Bucket Elevators |
| Tailings Management | Tailings Dams
Paste Thickeners |
| Refining and Smelting | Smelting Furnaces
Electrolytic Cells |
Conclusion
Mineral processing is a key part of mining. It turns raw ore into valuable stuff. By following steps like crushing, grinding, screening, separating, concentrating, and drying, we can get and clean valuable minerals. Using the right tools and new technology helps make mining good for business and the environment. As we go on, making mineral processing better and finding new ways to do it will be very important to keep up with the world’s need for minerals. This will help the economy grow while also taking care of our planet.
