Vibrating Screen Design Demystified: Types and Benefits

What is a Vibrating Screen?

A vibrating screen is a mechanical equipment that is used in the classification of materials such as minerals, coal and aggregates through the use of vibration. This motion is produced by an electric motor that turns an eccentric shaft, which makes the screen to vibrate. The primary advantage of vibrating screen is that it can process large quantities of material and at the same time, it can separate the material with high accuracy. This results in increased efficiency, less time wasted, and better quality of the end product. Also, vibrating screens are flexible and can be adapted to fit specific needs and requirements of different industries to meet their needs.

Application of Vibrating Screen

Vibrating screens are utilized in a multitude of industries due to their adaptability and efficiency. They play a crucial role in material processing and classification.

● Mining (e.g., coal, gold, iron ore)

● Aggregates (e.g., sand, gravel, crushed stone)

● Food Processing (e.g., flour, sugar, nuts)

● Pharmaceuticals (e.g., powders, granules, capsules)

Vibrating Screen Design for Different Industries

Vibrating screens are designed in many ways depending on the industry and the needs of the application. Every sector has its own requirements that define certain characteristics of the design to achieve the best results.

Mining

As for the vibrating screen application in the mining industry, the design emphasis is made on the sturdiness and high-strength construction. These screens must be capable of processing a lot of material and be able to endure the conditions in which they are used. It is necessary to have strengthened screen bodies, powerful eccentric shafts, and large-capacity bearings. Also, the screens should be able to accept large feed sizes and effectively sort the coarse and fine materials. Mining screens can be single or multiple decks depending on the size of the material to be separated in the same operation.

Aggregates

In the aggregates industry, vibrating screens are used to offer high efficiency and accurate sorting of the materials. The emphasis is made on the material handling and the time when the equipment is not in use. Screens are normally built with an inclination to enable the materials to travel through them with little depth on the bed thus increasing the efficiency of the screen. The screen mesh is usually made from materials such as polyurethane or high tensile steel to handle abrasive materials such as sand and gravel. Other features include quick-release mechanisms for screen changes to minimize the amount of time spent on maintenance.

Food Processing

Food processing vibrating screens are made with cleanliness and safety in mind. These screens are usually made of stainless steel to avoid contamination and are usually easy to clean. Some of the design aspects are smooth surfaces and rounded corners to minimize the accumulation of material. Screens are also fitted with features that allow for regulation of the amplitude and frequency of vibrations to avoid damaging the food products. This reduces the amount of damage that the materials undergo and helps in preserving the quality of the product.

Pharmaceuticals

When it comes to pharmaceutical industries, the vibrating screens used must conform to certain regulatory requirements. These screens are made to be accurate and hygienic. The materials used are usually high grade stainless steel and the design has provisions that eliminate cross contamination. Screens are usually fitted with wire meshes to filter out fine particles and to achieve a uniform size. Furthermore, the design of the equipment includes elements that are easy to clean and equipment that can be quickly disassembled for proper cleaning between batches.

Optimizing Vibrating Screen Efficiency

There are several options that can be adjusted in order to achieve the highest efficiency of vibrating screens. These options enable the screen to be optimized for the material and operational needs of the process. To optimize performance, it is crucial to familiarize yourself with the Essential Guide to Vibrating Screen Parts.

Screen Mesh Selection: The selection of the right screen mesh size and material is therefore very important for the best results. The fine meshes are more appropriate for the separation of small particles while the coarse meshes are appropriate for the large materials. The type of mesh, for example, stainless steel or polyurethane affects strength and wear resistance. The mesh is used in a consistent manner and is replaced on a timely basis to maintain its effectiveness.

Vibration Settings: It is possible to increase or decrease the amplitude and frequency of vibrations and it will affect the screening efficiency. Higher amplitudes are suitable for larger feed sizes while finer materials are suitable for higher frequencies. These changes are useful in attaining the right degree of stratification and separation. Adjusting these settings according to the characteristics of the material used is recommended for the best results.

Safety Features: Introducing new safety features in the design of vibrating screens improves productivity and safety of workers. Emergency stop buttons, protective covers and automatic shutdown systems help to avoid accidents and equipment failures. These features are kept operational through routine safety audits and maintenance inspections.

Automated Control Systems: The use of automated control systems can help to fine-tune and monitor the screening process in real-time. These systems can also control feed rates, vibration settings and the angle of the screen depending on the data fed into the system. This automation helps to minimize the level of human interference and enhance uniformity.

Customizable Screen Decks: The screen deck can be designed to enhance the flow of materials and the separation process. Multi-deck screens enable the separation of various particle sizes at the same time, enhancing the flow rate. The inclination and design of each deck can be changed depending on the type of material and the intended use of the plant.

How does the Vibrating Screen Machine Work?

From the above vibrating screen diagram, it can be seen that the working of a vibrating screen entails the creation of vibrations to transport the materials across the screen mesh for sorting. The process begins with the screen feed, a combination of coarse and fine particles, fed into the inclined screen at the top. As the material flows down the screen, stratification occurs: larger, oversize particles are retained on the surface of the screen while the smaller, undersize particles can go through the mesh openings. This is a stratified region and the rate of screening is high hence making it easier to sort the materials based on size.

The vibrating screen machine is an electromechanical equipment that uses an electric motor to cause vibrations through an eccentric shaft. These vibrations make the material to slide on the surface of the screen. The angle of the screen also helps in the flow of the material so that particles make contact with the screen surface for separation. The process is further facilitated by the fact that the vibration amplitude and frequency can be set in a specific manner depending on the type of material to be separated and the efficiency required. The material continues to move and the finer particles pass through the screen mesh while the larger particles are discharged from the end of the screen thus ending the separation process.

Factors Affecting Vibrating Screen Performance

● Screen Mesh Size: The size of the mesh of the vibrating screen is a major determinant of the efficiency of the machine. The mesh sizes that are smaller offer better separation and this is important in applications that need high accuracy. However, fine meshes are more prone to clogging which lowers the throughput. This way, the mesh’s performance remains constant, and it is checked and maintained frequently. It is crucial to select the right mesh size depending on the characteristics of the material and the intended use.

● Vibration Amplitude and Frequency: The degree of oscillations and the frequency of oscillations have a direct impact on the effectiveness of screening. Higher amplitude and frequency enhance the stratification and separation of the materials. However, high vibrations cause wear and tear of the equipment and can even cause damage to it. These parameters must be fine-tuned depending on the type of material and the intended result. It is possible to achieve the best results and increase the service life of the equipment by constant supervision and fine-tuning.

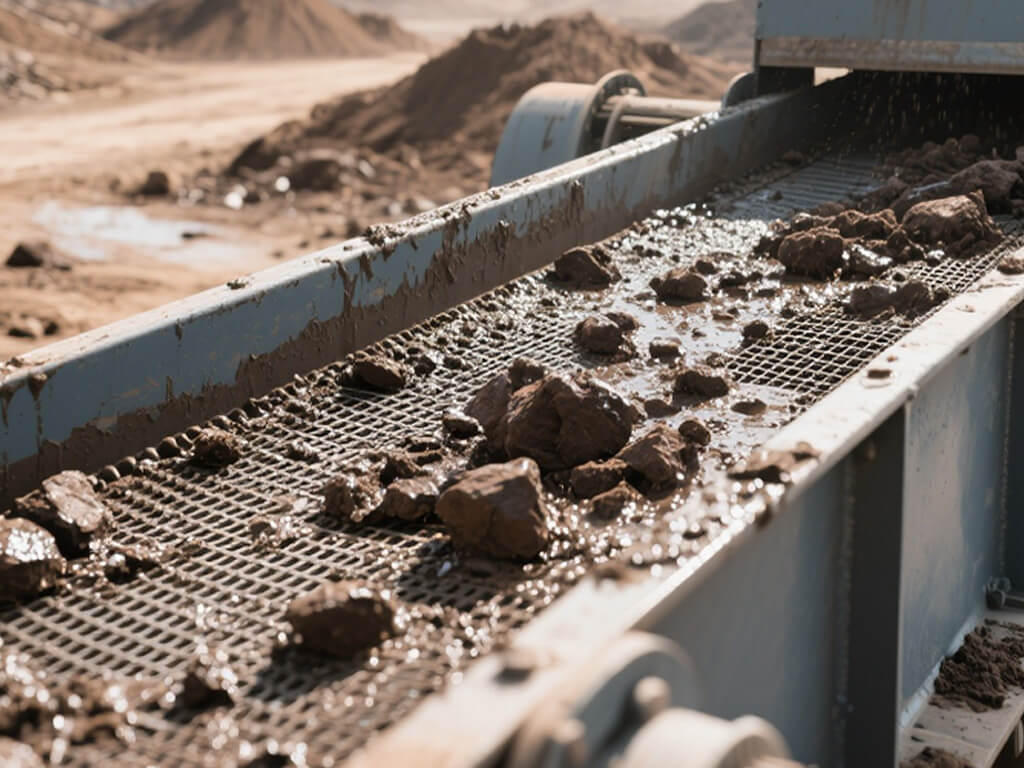

● Material Characteristics: Some of the factors that influence screening efficiency include the moisture content, shape of the particles and density of the material being screened. If the material is moist or sticky, it will block the screen and not allow proper filtration. They may not stratify well because they are not in a regular shape and size, thus resulting in poor separation. Knowledge of these characteristics is useful in choosing the right type of screen and the settings to be applied. It is suggested that the screen should be adjusted periodically to reflect the changes in the material to enhance performance.

● Feed Rate: It is important to maintain a steady and constant feed rate to ensure that the material is spread evenly across the surface of the screen. If the screen is overloaded, material accumulates on the screen surface and decreases the screening efficiency. On the other hand, underloading may result to underutilization of the available screening space. The feed rate should be maintained at a constant rate to achieve the best stratification and separation. Feeders can be useful in keeping the feed rate constant.

● Inclination Angle: Inclination of the screen has an impact on the flow and stratification of the material. A steeper angle raises the flow rate, which means that the materials will travel across the screen at a faster pace. However, this can decrease the time particles spend on the screen and thus may decrease the efficiency of separation. Changing the angle of inclination is useful in balancing the rate of work and the precision of the work. It is possible to achieve the best results for various types of materials through constant monitoring and fine-tuning.

● Maintenance and Wear: Maintenance is critical to the efficiency of vibrating screens and should be done as often as possible. Deterioration of the screen mesh, bearings, and shafts can lead to inefficiency of the equipment. Regular check-ups and timely replacement of the worn out parts help avoid breakdowns. Reducing friction through lubrication helps in the reduction of wear and tear of the moving parts hence increasing the life span of the equipment. Maintenance practices help in maintaining the performance of the equipment and reduce the time it takes to be out of service.

JXSC can customize vibrating screens based on your material, feed size, screen size, and the number of screen decks. For tailored design solutions, visit JXSC Vibrating Screens.

Different Types of Vibrating Screens

Types	Dsecription	Pros and Cons	Applications
Inclined Screens	Inclined screens are designed with an angle to help material flow. They use gravity to move materials over the screen, improving efficiency and throughput. These screens are common in the aggregate and mining industries for sorting large particles.	They are efficient for large particles and high throughput. However, they may not be suitable for fine screening and can take up more space. They are durable and easy to maintain, but material can build up at the bottom.	Best for aggregate and mining industries where large particles need sorting. Ideal for primary screening and high-capacity uses.
Horizontal Screens	Horizontal screens provide precise separation with a flat surface. They offer better control over the screening process, ensuring accurate results. These screens are ideal for fine material separation and high-precision tasks.	These screens are precise and accurate for fine materials. However, they have lower throughput compared to inclined screens and can be more complex to maintain. They require less space but may need more frequent cleaning to avoid clogging.	Used in pharmaceuticals and food processing where precision is critical. Ideal for fine material separation and quality control.
Banana Screens	Named for their curved shape, banana screens offer multiple angles in a single unit. This design increases capacity and efficiency by processing more material at once. They are effective for handling high volumes.	Banana screens offer high capacity and efficiency, suitable for large-scale operations. Their complex design can be harder to maintain and repair. They handle high volumes well but may not be as precise for fine materials.	Common in mining and heavy-duty applications where large volumes need processing quickly. Suitable for high-capacity operations.
Dewatering Screens	These screens are designed for dewatering. They use high-frequency vibration to remove moisture from materials, making them ideal for wet material processing. Dewatering screens ensure materials are dry after screening.	Dewatering screens are effective at removing moisture, improving material handling and reducing drying times. However, they are specialized and may not be versatile for other tasks. They are efficient but can have higher operational costs.	Used in mining, wastewater treatment, and any industry where moisture removal is crucial. Ideal for dewatering and drying tasks.
Grizzly Screens	Grizzly screens have large openings to handle coarse materials. They are often used in primary screening to remove large rocks and debris before secondary processing. These screens are robust and durable.	Grizzly screens are durable and handle large materials well, reducing the load on secondary crushers. However, they are not suitable for fine screening and can be noisy. They need minimal maintenance but may need cleaning to prevent clogging.	Best for mining and heavy-duty uses where large rocks and debris need to be screened out. Used as a primary screening tool.
Rotary Screens	Rotary screens feature a cylindrical drum that rotates to screen materials. They provide gentle handling and are effective for separating materials based on size. These screens are versatile and can be used for various materials.	Rotary screens offer gentle handling and versatility, suitable for a wide range of materials. They have lower throughput compared to vibrating screens and can be more complex to maintain. Their rotating design reduces noise but may require more space.	Common in food processing, pharmaceuticals, and recycling where gentle handling and versatility are needed. Suitable for separating different material sizes.

JXSC Mine Machinery Factory offers a variety of vibrating screen designs tailored to meet the diverse needs of different industries. For detailed design solutions, visit JXSC Vibrating Screens.

How to Choose the Right Vibrating Screen for Your Needs?

● Identify Material Characteristics: It is important to know the peculiarities of the material you are going to use. These include aspects such as size, shape and moisture content of the particles. The screen mesh size and type vary depending on the material to be separated to get the best results. Okay, a dry and small particle size material may require a high-frequency screen, while a wet or sticky material may require a dewatering screen. This makes sure that the vibrating screen is capable of sorting the material without blocking or slowing down the process.

● Consider the Application: The type of application you have in mind for the vibrating screen determines the decision you make. Mining applications usually involve large and powerful screens with a high degree of construction to process large quantities of ores and aggregates. On the other hand, food processing or pharmaceuticals require accuracy and cleanliness to avoid contamination of the products. This is because knowing the specific application enables one to get a screen that is standard in the industry and one that will meet the operational needs.

● Evaluate Capacity Requirements: Evaluating your production requirements is crucial when selecting the screen. Find out the throughput that is required and check if the screen can accommodate the number of people expected to go through it. Too much information on a screen may cause a lot of confusion and the screen may also wear out faster. Select a screen with a capacity slightly larger than the amount of material you are going to feed to the screen to allow for variations in the feed rate. Check

● Compatibility with Existing Equipment: Make sure that the vibrating screen can easily fit into your existing production line without any problems. Take into account the size of the screen, the input/output interfaces and the organization of the facility. Compatibility is less likely to require significant changes, which saves time and money. Also, a well-integrated screen enhances the general working flow and reduces interferences during installation.

● Analyze Operational Environment: The environment in which the screen will be used determines its efficiency and durability of the screen. Some of the conditions that should be taken into consideration include the temperature, humidity, and corrosive substances. In extreme conditions, the screens can be made from stainless steel or coated with some protective layer. This can be avoided by making sure that the screen is made in a way that it can endure the conditions it is subjected to during operations.

● Evaluate Maintenance and Support Services: Select a vibrating screen that can be easily maintained and has a dependable support system. Some of the things to look for include easy access to screen mesh, easy lubrication points, and rugged construction to reduce the time that the machine will spend off. Think of manufacturers that offer support services such as availability of spare parts and technical support. Proper care and timely intervention can go a long way in increasing the durability of the screen and guarantee functionality.

To find the best vibrating screen manufacturers, explore the Top 5 Vibrating Screen Manufacturers: Boost Your Mining Efficiency guide.

Maintenance Tips for Vibrating Screens

Maintenance is crucial in the longevity and efficiency of the vibrating screens and should be done frequently. Carry out periodic checks to determine the level of wear and tear on the screen mesh, bearings and other vital parts. Grease up the moving parts to minimize friction and heat build up. Ensure that the screen is free from any material that may accumulate and block the screen. It is recommended that any damaged parts should be replaced immediately to avoid further deterioration and to ensure the best performance of the screening process.

Conclusion

The future of vibrating screen design is aimed at increasing productivity, decreasing the need for maintenance, and increasing the lifespan of the equipment. Newer technologies such as high amplitude low frequency vibration, self-cleaning screen mesh, and automated monitoring systems are being used more frequently. These trends are to enhance the durability of the equipment, minimize the time the equipment is out of service, and offer better screening solutions to the various sectors. JXSC Mine Machinery Factory provides high-quality vibrating screen solutions that can fulfill these new requirements. For more specific design solutions, please go to JXSC Vibrating Screens.

FAQs

What factors should be considered when selecting a vibrating screen for a specific material?

Selecting the appropriate vibrating screen depends on the nature of the material to be screened; this includes the size, shape and moisture content of the material. The screen mesh size and type should be selected based on the characteristics of the material to be screened to obtain the best results. Also, the abrasiveness of the material and the throughput that is needed can be used in the selection of the screen that will be able to stand the test of time and also meet the production requirements.

What are the cost implications of the various vibrating screen designs?

The price of vibrating screens depends on the design, material used, and other features that may be incorporated in the design. Mining applications screens are generally costlier than food processing applications due to their construction and capacity. Other attributes like energy consumption, ease of maintenance, and durability also affect the cost and should be taken into account when comparing the designs.

What is the impact of angle of inclination on the efficiency of inclined vibrating screen?

The slope of the bed affects the rate of material flow and segregation on an inclined vibrating screen. Higher angle enhances the flow rate and throughput but may decrease the residence time of particles on the screen thus the efficiency of separation. This way, throughput and screening accuracy can be balanced by adjusting the angle. Thus, it is crucial to determine the angle that provides the highest level of material processing and the quality of separation.

In what ways can vibrating screens be incorporated into the current production line?

Vibrating screens can be easily incorporated into the existing production lines by making them conform to size, shape and installation interfaces. One must also take into account the screen size and its position in the feed and discharge area and any changes that may be required in the production line to incorporate the new equipment. The integration process can be made easier and the efficiency of the production process improved if the planning and layout design are well done.
